Riding the Moving Stairs: Explaining The Engineering Marvel Behind Escalators
Escalators are complex machines that combine mechanical, electrical, and safety systems to transport people.
By Anubha Jain
Published : November 11, 2025 at 1:19 PM IST
Bengaluru: The concept of mechanical stairs that can transport people between floors would have been like a fairy tale in the distant past. Having started as a joyride over 100 years ago, escalators have become a vital part of modern infrastructure, especially in shopping malls, airports, and metro stations. They help move large numbers of people quickly and safely, saving time and energy while reducing crowd congestion. The structure is so common that we seem to have forgotten that it is a sophisticated piece of technology. Let's take a look at the engineering behind the escalator, which makes them work so smoothly and reliably.

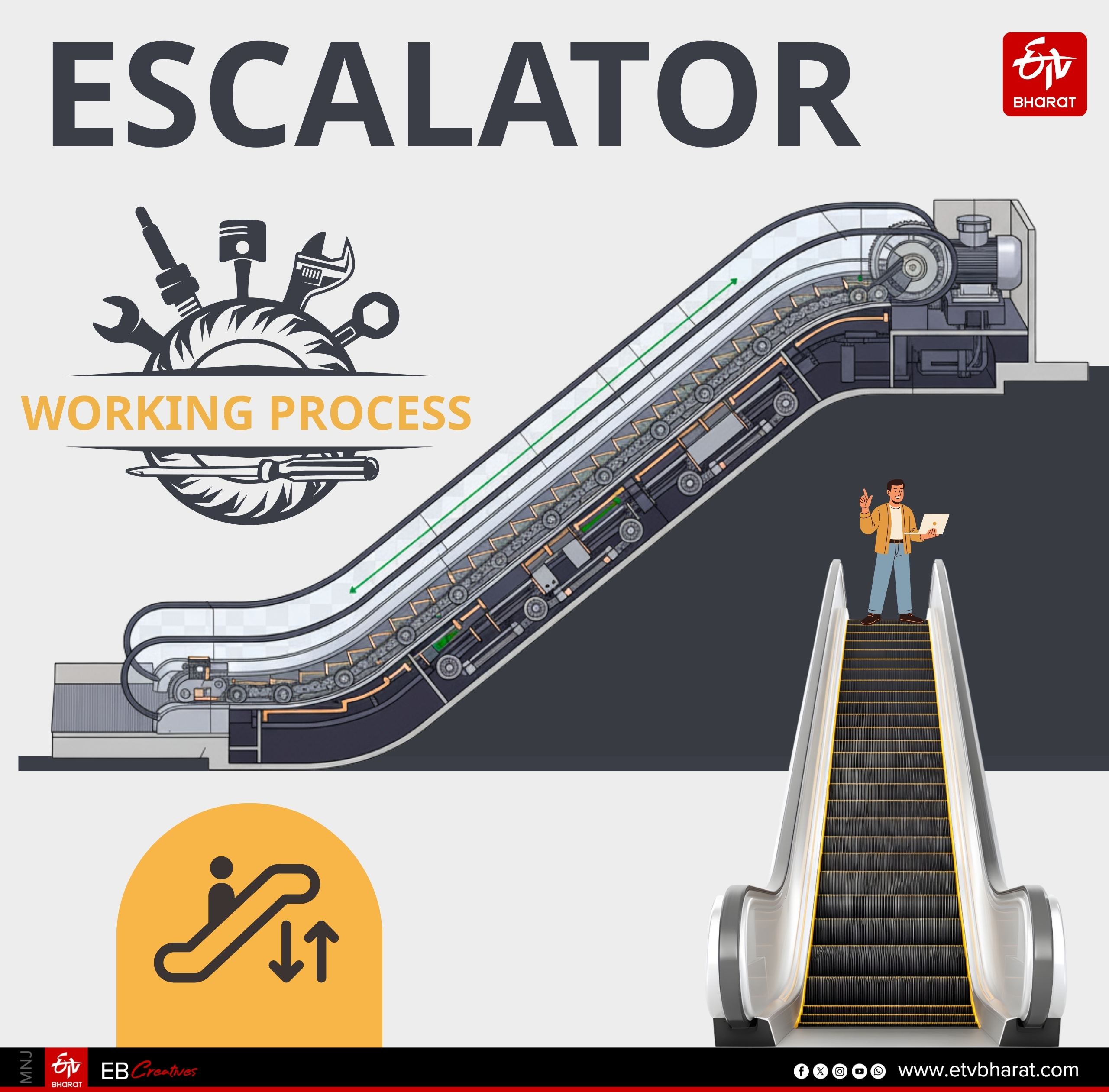

How an escalator works
An escalator operates through a coordinated system of mechanical and electrical components designed to move passengers safely and efficiently between floors. The main driving force comes from an electric motor—typically located at the top of the escalator—that powers a large gear mechanism connected to heavy-duty step chains. These chains form a continuous loop that moves a series of interconnected steps along guiding tracks.
Each step is fitted with two sets of wheels that run on separate tracks. One set keeps the steps level, while the other controls their movement along the escalator’s slope. This system ensures that the steps unfold smoothly into a staircase as they rise and neatly flatten out at the top and bottom landings.
From power to motion: The energy transformation
If we look deeper, the escalator is an excellent example of energy conversion. The electric motor converts electrical energy into mechanical energy, which drives the step chains and handrails. Modern escalators use energy-efficient motors that reduce power consumption while maintaining constant speed and smooth motion.
In advanced systems, regenerative drives capture unused energy during operation and feed it back into the building’s power grid, lowering overall energy use and carbon emissions. This makes escalators not only convenient but also environmentally responsible.
Strong steps and smooth rides
The steps of an escalator are usually made from cast aluminium or stainless steel, materials chosen for their strength, durability, and resistance to corrosion. Their grooved surfaces prevent slipping, providing a firm foothold for passengers.
The handrail, made from layered rubber or synthetic materials, moves in perfect synchronisation with the steps. It’s driven by the same motor system, ensuring passengers always have a steady handhold as they ride.
Safety in every step
At each landing, comb plates with interlocking teeth fit into the grooves of the steps. These prevent objects from getting caught between moving and stationary parts. If an object does get trapped, a safety switch instantly stops the escalator to prevent accidents. Modern escalators also feature a range of safety innovations, which include:
- Motion sensors that detect irregular movement or blockage
- Emergency stop buttons at both ends for immediate shutdown
- Skirt brushes along the sides to prevent shoes, clothing, or bags from getting caught
- Indicator lights and warning signs to guide passengers for safe use
Together, these systems ensure a smooth, secure ride for millions of passengers daily.

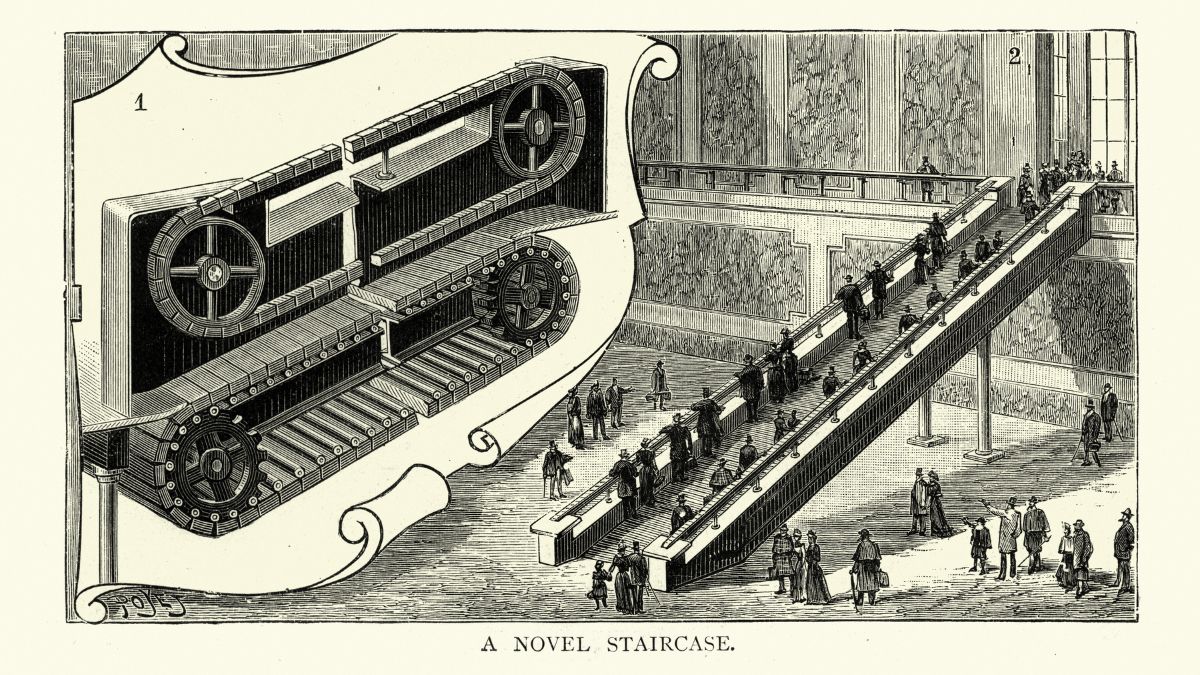

A step through time: The history of escalators
The story of the escalator began in 1892, when Jesse W Reno built the first working model, known as the “inclined elevator.” Later, Charles Seeberger improved the design and partnered with the Otis Elevator Company to commercialise it, leading to the modern escalators we see today.
From wooden steps in early designs to the sleek metal systems of today, escalators have evolved with technology—becoming faster, safer, and more efficient.
Smart escalators for a sustainable future
Today’s escalators are smarter than ever. Some models feature automatic start-stop systems that activate when passengers approach, conserving energy when idle. IoT-based monitoring systems detect maintenance needs and potential faults before they cause breakdowns. LED lighting improves visibility and aesthetics while reducing power use.
With continued innovation in materials, automation, and design, escalators are moving toward a future where they’re not just convenient but also sustainable and intelligent.
Pradeep Kumar Sharma, former Electrical Engineer, PWD Department, said that modern escalator systems are evolving with real-time monitoring, IoT-based predictive maintenance, and regenerative drive mechanisms that significantly enhance energy efficiency.
"Design priorities now include seamless traffic flow, stable and vibration-free movement, anti-slip steps, and inclusive features for the elderly and differently abled," he noted. "Moreover, escalators are being aesthetically integrated into contemporary architecture through the use of custom materials, ambient LED lighting, and advanced noise-control technologies, creating a blend of efficiency, safety, and visual appeal in public environments."
The engineering behind everyday ease
Escalators are more than just moving stairs—they’re a symbol of modern engineering and urban efficiency. Every part, from the motor and chains to the sensors and control systems, works in harmony to keep people moving safely and smoothly.
By blending mechanical precision, electrical power, and advanced safety systems, escalators show how engineering can transform simple movement into seamless convenience. As technology continues to evolve, the next generation of escalators will be even safer, smarter, and more energy-efficient, keeping cities—and people—moving forward.
